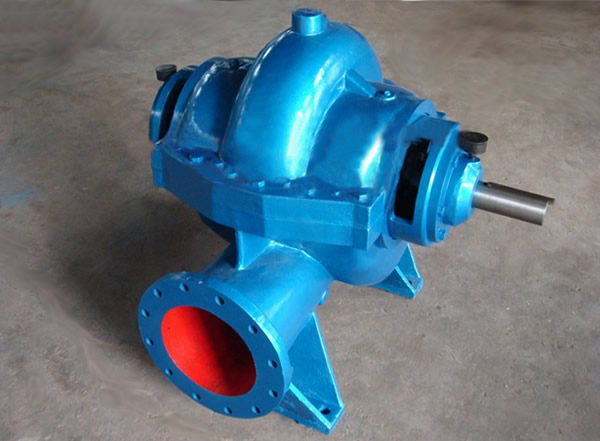

MZOSS type single-stage double-suction split centrifugal pump
The MZOSS series single-stage double-suction split centrifugal pump is a new generation of high-performance products developed by Chengdu Mingzhu Pump Industry on the basis of the original S-type single-stage double-suction centrifugal pump after absorbing foreign advanced double-suction pump technology; it is SH, S-type The mid-open double-suction pump has the characteristics of high efficiency, compact structure, high strength and rigidity, good cavitation resistance, and wide application range.
The MZOSS series single-stage double-suction centrifugal pump is a new generation of high-performance products developed on the basis of the original S-type single-stage double-suction centrifugal pump; it is a replacement product for SH and S-type double-suction pumps with high efficiency. It has the characteristics of compact structure, high strength and rigidity, good cavitation resistance and wide application range.
Application range of MZOSS single-stage double-suction split centrifugal pump:
It is suitable for water plants, circulating water for air conditioning, building water supply, irrigation and drainage pumping stations. Industrial water supply systems, fire fighting systems, and shipbuilding industries are also suitable for general use in the oil refining industry; the transport medium is clean water or other liquids with substances and chemical properties similar to water. The solid content is not more than 80mg/L, and the use of special materials can also transport seawater, rainwater and industrial wastewater containing suspended solids.
Performance parameters of MZOSS single-stage double-suction split centrifugal pump:
Pump outlet diameter DN: 80-1000mm
Flow Q: 41~16093m/h
Head H: 7~170m
Working temperature T: -20℃-105℃ (normal type) -60℃-200℃ (high temperature type)
Solid particles: ≤80mg/L
Working pressure: ≤2.5Mpa (common type) ≤4Mpa (high temperature type)
