Transport clean water at room temperature or a medium with physical and chemical properties similar to clean water; refrigeration, air conditioning systems, cooling towers, cooling water circulation; general water supply systems. Pipeline pressurization, garden fountain; fire water supply.

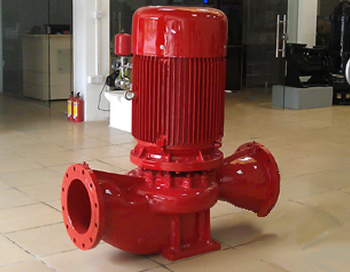

The XBD-GD electric fire pump is based on the GD pipeline pump and selected and improved according to the special requirements of the building's fire protection system. It is used to transport clear water with a temperature not higher than 80°C and other media with similar physical and chemical properties to clear water. Mainly used in large-scale commercial buildings, hotels, high-rise buildings, civil residences and industrial and mining enterprises, fire hydrants, and automatic sprinkler systems as feed water pumps. The whole series of pumps have a wide spectrum range and can be selected according to different conditions. The flow rating of the pump meets the fire flow requirements specified in GB6245 "Fire Pump Performance Requirements and Test Methods", and has the advantages of reliable performance, stable operation, low vibration and noise, and long life. The seal ring of the pump is made of corrosion-resistant copper alloy, which avoids the problem of the rotating parts and the fixed seizure of the fire pump in the standby state for a long time. The shaft seal is generally a mechanical seal.
The scope of use of the pump:
It is used in many occasions such as pipeline pressurization and water supply and cooling water circulation of air conditioning system. Transport clean water at room temperature or a medium with physical and chemical properties similar to clean water; refrigeration, air conditioning systems, cooling towers, cooling water circulation; general water supply systems. Pipeline pressurization, garden fountain; fire water supply.
The pump is directly connected with the motor and adopts a mechanical seal, which has a long life and no leakage. The water inlets and outlets are on the same horizontal axis, and can be connected in series or parallel according to the flow and head requirements. The area is small and the installation and maintenance are convenient.
Performance parameters of XBD-GD pipeline fire pump:
Flow rate: 18-240(M3/H)
Pressure: 0.3-1.33 (mpA)
Speed: 2900 (r/min)
Shaft power: 2.51-32.7 (KW)
Motor power: 3-37 (KW)
Efficiency: 37-72.5 (%)
Cavitation allowance: 2.5-4.5 (m)
Corrosion resistant materials are divided into 304/316/316L stainless steel
Features of XBD-GD pipeline fire pump:
·The pump and the motor are directly connected, and the appearance is beautiful
·Small size, light weight, easy installation
·Low noise
·Pump and motor are directly connected
·The entrance and exit have the same horizontal axis, vertical installation
·Hydraulic balance method eliminates axial force
·Single unit or multiple units (according to the working pressure of the pump) can be connected in series, and can also be installed horizontally or vertically.
