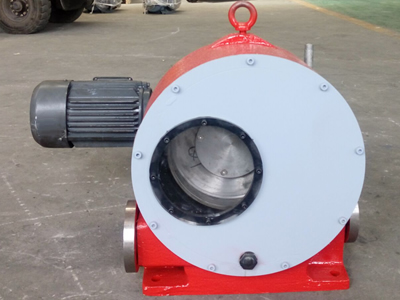

IHP Industrial Hose Pump
IHP peristaltic hose pump, also known as squeeze hose pump, has great advantages in the transportation of media with high viscosity, high corrosivity, and large fluid impurities. It has a completely different principle from traditional delivery pumps and has a wide range of applications.
Overview of IHP hose pump:
The series of industrial hose pumps is a new, multi-functional and multi-purpose industrial pump. It completely gets rid of the operation mode of traditional pump impeller and shaft seal, and has great advantages in the transportation of media with high viscosity, high corrosion, and large fluid impurities. It has a completely different principle from traditional pumps and has a wide range of applications.
Working principle of IHP hose pump:
A special rubber hose with a smooth inner wall and reliable strength is installed inside the pump body. It is rotated and squeezed along the hose by a pair of pressure rollers. This rotation allows the medium to be transported in one direction without backflow. The hose is transporting After the medium is filled, the elasticity of the squeezed hose and the force of the side guide rollers restore the hose to its original shape. At this time, a high vacuum is generated in the hose to suck the medium into the lumen again. The roller is squeezed and discharged from the hose, so that the medium is continuously sucked and discharged.
Advantages of IHP hose pump:
Unique non-sealed structure, without any leakage or pollution; adopts advanced rolling technology, the pressure roller does not need any lubrication; strong self-priming ability and self-cleaning ability, can suck materials positively and negatively; simple hose assembly, installation and maintenance Simple, low maintenance cost, simple operation; flow can be linearly adjusted, and has a certain metering function; it does not cause any blockage in the transportation of liquid with high viscosity and impurities; the pump has a long service life, high lift and high pressure at the pump port.
The characteristics of the IHP hose pump are introduced:
The hose pump is simple and compact in structure, easy to manufacture, low in failure string, easy in operation and maintenance, easy in maintenance, low in cost, and is suitable for a variety of mixed fluids. The main features of hose pumps are:
(1) It is a positive displacement spring, which has the characteristics of no mechanical seal, strong self-priming ability, and self-cleaning.
(2) There is no pump valve, no leakage and air lock phenomenon of sealed pumps will occur, and the running, emitting, dripping, leakage loss and pollution caused by leakage are prevented, and the work site is clean.
(3) The hose pump has a simple structure, no impeller, no chamber and other structures, and has strong adaptability. Liquid, slurry and viscous suspended materials can be transported. In particular, the flexible hose cavity can pump liquids with impurities, various fiber objects, and solid slurries with a particle size of less than 1/4 of the hose diameter, and the smooth hose cavity does not cause any blockage. Larger solid particles are allowed. The concentration of the conveying medium can be greater than 70%. Therefore, it is very suitable for high-concentration material transportation.
(4) No need to fill the pump before running. The rotor itself acts as a valve when the pump is stopped. Backflow is prevented, and failures such as spindle sealing will not occur during dry running.
(5) The liquid meter sucked by the pump is in contact with the hose. Therefore, it can transport the corrosive, toxic, sterile, radioactive, ore pulp and other abrasive media with high surface content that the rubber can withstand, and the materials that require high sanitation levels and are not allowed to be damaged by shearing force. Such as slag slurry conveying in process operations such as mineral processing and atmosphere. It can be used as a general stainless steel pump. Its gentle, low shear force reduces the damage of certain vulnerable media to a low level. The activity of the fluid will not be destroyed. The conveying medium is only in contact with the rubber tube, which overcomes the shortcomings of excessive wear of pump parts. Therefore, the pump body and the like only need to be made of ordinary materials, and the cost is low. Can transport high-density media. The centrifugal pump can handle the medium specific gravity limit of 2.6kg/cm', while the Shaodong pump can handle the medium with a specific gravity of 4.3kg/cm'.
(6) It can rotate forward and backward. No import and export settings, low power consumption, high hydraulic and volumetric efficiency.
(7) It has a good metering ability and can be used as a t-meter pump. The flow can be changed by selecting the size of the pipe and the speed of the joint. The flow range is wide, and the It meter accuracy and repeatability are high. The flow accuracy can be less than 10%, and it will not be affected by changes in medium viscosity.
