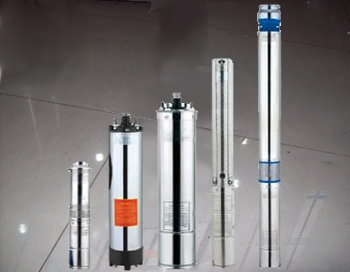

QJ不銹鋼深井潛水泵
QJ不銹鋼深井潛水泵，用于從深井提取地下水,也可用于河流、水庫、水渠等提水工程
詳細信息：
QJ型井用潛水泵是電機與水泵直聯潛入水中工作的提水機具,它適用于從深井提取地下水,也可用于河流、水庫、水渠等提水工程:主要用于農田灌溉及高原山區的人畜用水,亦可供城市、工廠、鐵路、礦山、工地供排水使用。
主要特點：
1.電機、水泵體,潛入水中運行,安全可靠。
2.對井管、揚水管無特殊要求(即:鋼管井、灰管井、土井等可使用;在壓力許可下,鋼管、膠管、塑料管等可作揚水管使用)。
3.安裝、使用、維護方便簡單,占地面積小、不需建造泵房。
4.結構簡單,節省原材料。 潛水電泵使用的條件是否合適,管理得當與使用壽命有直接的關系。

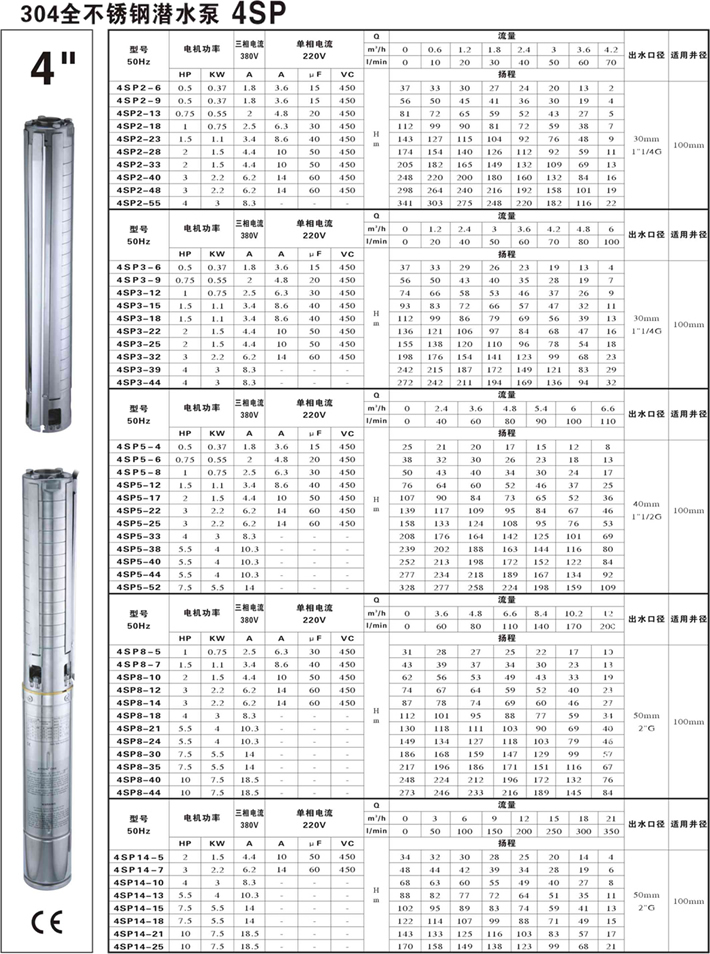

性能參數表：
|
噸/天 |
序號 |
通用型號 |
電機功率 |
單相電流 |
三相電流 |
流量/揚程 |
出水 |
適用 | |||
|
m3/24h |
口徑 |
井徑 | |||||||||
|
|
HP |
KW |
A |
A |
(m3/h)/(m) |
mm |
mm | ||||
| 43m3 | 1 | 100QJ1.8-/21-10 | 0.33 | 0.25 | - | 2.5 | 1.2/25 | 1.8/21 | 2.4/15 | 25mm 1"G |
75 |
| 2 | 100QJ1.8-/33-16 | 0.5 | 0.37 | 1.8 | 3.3 | 1.2/41 | 1.8/33 | 2.4/24 | |||
| 3 | 100QJ1.8-/48-23 | 0.75 | 0.55 | 2.1 | 4.4 | 1.2/58 | 1.8/48 | 2.4/34 | |||
| 4 | 100QJ1.8-/66-32 | 1 | 0.75 | 2.5 | 5.7 | 1.2/81 | 1.8/66 | 2.4/48 | |||
| 5 | 100QJ1.8-/92-46 | 1.5 | 1.1 | 3.5 | - | 1.2/113 | 1.8/92 | 2.4/65 | |||
| 40m3 | 6 | 100QJ1.2-59/8 | 0.5 | 0.37 | 3.6 | 1.8 | 0.6/67 | 1.2/59 | 1.8/46 | 30mm | 100 |
| 7 | 100QJ1.2-86/12 | 0.75 | 0.55 | 4.8 | 2 | 0.6/98 | 1.2/86 | 1.8/68 | 1"1/4G | ||
| 8 | 100QJ1.2-101/14 | 1 | 0.75 | 6.3 | 2.5 | 0.6/114 | 1.2/101 | 1.8/80 | |||
| 9 | 100QJ1.2-115/16 | 1.5 | 1.1 | 8.6 | 3.4 | 0.6/131 | 1.2/115 | 1.8/90 | |||
| 10 | 100QJ1.2-158/22 | 2 | 1.5 | 10 | 4.4 | 0.6/180 | 1.2/158 | 1.8/124 | |||
| 11 | 100QJ1.2-203/28 | 3 | 2.2 | 14 | 6.2 | 0.6/229 | 1.2/203 | 1.8/158 | |||
| 60m3 | 12 | 100QJ2-40/6 | 0.5 | 0.37 | 3.6 | 1.8 | 1.5/43 | 2/40 | 3/30 | 30mm | |
| 13 | 100QJ2-56/8 | 0.75 | 0.55 | 4.8 | 2 | 1.5/60 | 2/56 | 3/42 | 1"1/4G | ||
| 14 | 100QJ2-83/12 | 1 | 0.75 | 6.3 | 2.5 | 1.5/89 | 2/83 | 3/62 | |||
| 15 | 100QJ2-109/16 | 1.5 | 1.1 | 8.6 | 3.4 | 1.5/116 | 2/109 | 3/81 | |||
| 16 | 100QJ2-137/20 | 2 | 1.5 | 10 | 4.4 | 1.5/146 | 2/137 | 3/102 | |||
| 17 | 100QJ2-200/30 | 3 | 2.2 | 14 | 6.2 | 1.5/214 | 2/200 | 3/142 | |||
| 18 | 100QJ2-254/40 | 4 | 3 | - | 8.3 | 1.5/281 | 2/254 | 3/180 | |||
| 19 | 100QJ2-310/50 | 5.5 | 4 | - | 10.3 | 1.5/330 | 2/310 | 3/235 | |||
| 100m3 | 20 | 100QJ4-30/6 | 0.75 | 0.55 | 4.8 | 2 | 3/3 | 4/30 | 5/22 | 40mm | |
| 21 | 100QJ4-39/9 | 1 | 0.75 | 6.3 | 2.5 | 3/46 | 4/39 | 5/43 | 1"1/2G | ||
| 22 | 100QJ4-60/12 | 1.5 | 1.1 | 8.6 | 3.4 | 3/69 | 4/60 | 5/43 | |||
| 23 | 100QJ4-80/16 | 2 | 1.5 | 10 | 4.4 | 3/90 | 4/80 | 5/58 | |||
| 24 | 100QJ4-100/20 | 3 | 2.2 | 14 | 6.2 | 3/115 | 4/100 | 5/70 | |||
| 25 | 100QJ4-120/24 | 4 | 3 | - | 8.3 | 3/138 | 4/120 | 5/86 | |||
| 26 | 100QJ4-140/30 | 4 | 3 | - | 8.3 | 3/165 | 4/140 | 5/102 | |||
| 27 | 100QJ4-180/40 | 5.5 | 4 | - | 10.3 | 3/210 | 4/180 | 5/129 | |||
| 28 | 100QJ4-255/55 | 7.5 | 5.5 | - | 14 | 3/287 | 4/255 | 5/180 | |||
| 29 | 100QJ4-340/75 | 10 | 7.5 | - | 18.5 | 3/375 | 4/340 | 5/245 | |||
| 150m3 | 30 | 100QJ6-28/6 | 1 | 0.75 | 4.8 | 2.5 | 4/36 | 6/28 | 7/20 | ||
| 31 | 100QJ6-40/9 | 1.5 | 1.1 | 8.6 | 3.4 | 4/53 | 6/40 | 7/30 | |||
| 32 | 100QJ6-47/11 | 2 | 1.5 | 10 | 4.4 | 4/65 | 6/47 | 7/33 | |||
| 33 | 100QJ6-59/13 | 2 | 1.5 | 10 | 4.4 | 4/78 | 6/59 | 7/40 | |||
| 34 | 100QJ6-83/18 | 3 | 2.2 | 14 | 6.2 | 4/108 | 6/83 | 7/57 | |||
| 35 | 100QJ6-110/23 | 4 | 3 | - | 8.3 | 4/152 | 6/110 | 7/85 | |||
| 36 | 100QJ6-144/32 | 5.5 | 4 | - | 10.3 | 4/190 | 6/144 | 7/103 | |||
| 37 | 100QJ6-176/40 | 7.5 | 5.5 | - | 13.7 | 4/235 | 6/176 | 7/127 | |||
| 38 | 100QJ6-213/56 | 10 | 7.5 | - | 18.5 | 4/309 | 6/213 | 7/148 | |||
| 200m3 | 39 | 100QJ8-35/8 | 2 | 1.5 | 10 | 4.4 | 6/44 | 8/35 | 10/24 | 50mm | |
| 40 | 100QJ8-61/13 | 3 | 2.2 | 14 | 6.2 | 6/75 | 8/61 | 10/43 | 2 "G | ||
| 41 | 100QJ8-84/17 | 4 | 3 | - | 8.3 | 6/100 | 8/84 | 10/59 | |||
| 42 | 100QJ8-96/20 | 4 | 3 | - | 8.6 | 6/118 | 8/96 | 10/68 | |||
| 43 | 100QJ8-118/24 | 5.5 | 4 | - | 10.3 | 6/141 | 8/118 | 10/86 | |||
| 44 | 100QJ8-143/30 | 7.5 | 5.5 | - | 13.7 | 6/169 | 8/143 | 10/98 | |||
| 45 | 100QJ8-171/35 | 10 | 7.5 | - | 18.5 | 6/205 | 8/171 | 10/118 | |||
| 300m3 | 46 | 100QJ10-26/7 | 2 | 1.5 | 10 | 4.4 | 8/29 | 10/26 | 14/20 | ||
| 47 | 100QJ10-39/10 | 3 | 2.2 | 14 | 6.2 | 8/44 | 10/39 | 14/29 | |||
| 48 | 100QJ10-56/13 | 4 | 3 | - | 8.3 | 8/61 | 10/56 | 14/43 | |||
| 49 | 100QJ10-75/17 | 5.5 | 4 | - | 10.3 | 8/82 | 10/75 | 14/59 | |||
| 50 | 100QJ10-100/22 | 7.5 | 5.5 | - | 13.7 | 8/109 | 10/100 | 14/79 | |||
| 51 | 100QJ10-130/28 | 10 | 7.5 | - | 18.5 | 8/142 | 10/130 | 14/102 | |||
| 400m3 | 52 | 100QJ16-25/7 | 3 | 2.2 | 14 | 6.2 | 12/31 | 16/25 | 20/19 | ||
| 53 | 100QJ16-36/10 | 4 | 3 | - | 8.3 | 12/44 | 16/36 | 20/28 | |||
| 54 | 100QJ16-50/14 | 5.5 | 4 | - | 10.3 | 12/62 | 16/50 | 20/36 | |||
|
55 |
100QJ16-63/18 | 7.5 | 5.5 | - | 13.7 | 12/79 | 16/63 | 20/59 | |||
| 56 | 100QJ16-75/21 | 10 | 7.5 | - | 18.5 | 12/93 | 16/75 | 20/68 | |||
| 57 | 100QJ16-94/25 | 10 | 7.5 | - | 18.5 | 12/114 | 16/94 | 20/83 | |||
