details:

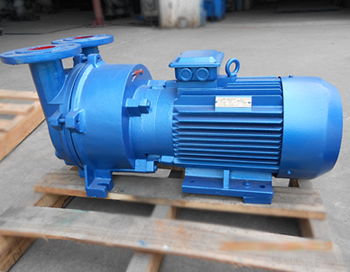

SKA(2BV) series vacuum pump is suitable for pumping gas and water vapor. The suction pressure reaches 33mbar absolute pressure (97% vacuum degree). When the vacuum pump works for a long time under the suction pressure lower than 80mbar, it should be connected with cavitation protection The pipe is used to protect the pump. If it is equipped with an atmospheric ejector, the suction pressure can reach 10mbar. The ejector can be directly installed on the vacuum pump. When used as a compressor, its pressure can reach 0.26MPa (absolute pressure).

Water ring vacuum pumps and compressors are widely used in petrochemical, pharmaceutical, food, sugar industry and other fields. Because the gas compression process is isothermal in the working process, when compressing and sucking flammable and explosive gases, It is not prone to danger, and its application is more extensive.



■ Structure and characteristics

  △ The design of coaxial direct connection of pump and machine saves space and is easy to install.

  △ Mechanical seal is adopted as standard configuration, which eliminates leakage and is easy to maintain.

  △ Smooth operation, noise can be as low as 62 decibels

  △ Uniform corrosion resistance design, bronze impeller improves the corrosion resistance of the pump, stainless steel material is more suitable for more demanding applications

  △ Unique flexible exhaust port design, no over-compression.



■ Technical parameters
