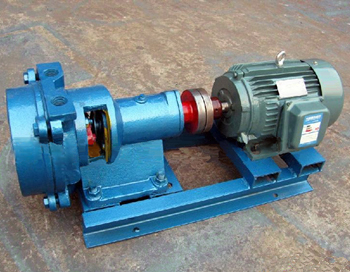

SZB type water ring vacuum pump
The SZB vacuum pump is a cantilevered water ring vacuum pump, which can be used to pump air or other non-corrosive, water-insoluble, and non-solid particles-free gases. The low suction pressure is -0.086Mpa. It is widely used in machinery, petroleum, chemical, pharmaceutical, food and other industries and other fields. It is especially suitable for diversion of large water pumps.
Structural features:
The SZB vacuum pump is a cantilevered water ring vacuum pump, which can be used to pump air or other non-corrosive, water-insoluble, and non-solid particles-free gases. The low suction pressure is -0.086Mpa. It is widely used in machinery, petroleum, chemical, pharmaceutical, food and other industries and other fields. It is especially suitable for diversion of large water pumps.
Performance parameter table:
|
型號
|
排氣量
|
吸 入
真 空 (mmHg) |
真空度
|
泵轉(zhuǎn)速
(r.p.m) |
電機功率
(Kw) |
口徑(mm)
|
泵重
(整機) (Kg) |
|||
|
m3/h
|
L/S
|
吸入
|
排出
|
|||||||
|
SZB-4
|
19.8
|
5.5
|
440
|
80%
|
1410
|
1.5
|
G1"
|
G1"
|
115
|
|
|
14.4
|
4
|
520
|
||||||||
|
7.2
|
2
|
600
|
||||||||
|
0
|
0
|
650
|
||||||||
|
SZB-8
|
38.2
|
10.6
|
440
|
80%
|
1420
|
2.2
|
G1"
|
G1"
|
130
|
|
|
28.8
|
8
|
520
|
||||||||
|
14.4
|
4
|
600
|
||||||||
|
0
|
0
|
650
|
||||||||
