Water Supply Equipment

Diesel Pump

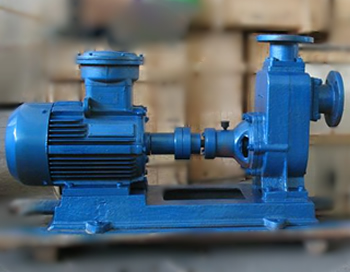

CYZ type explosion-proof self-priming solvent oil pump

CYZ type explosion-proof self-priming solvent oil pump is used to transport gasoline, kerosene, aviation kerosene and other petroleum products. It is an excellent marine oil loading and unloading pump, which can also be used as a stripping pump. It is also used for oil transportation in oil storage devices such as land oil depots and tank trucks. It can also be used to transport sea water, fresh water, etc.

Features:

The pump body structure with axial liquid return is adopted. The pump body is composed of a suction chamber, a liquid storage chamber, a vortex chamber, a liquid return hole, and a gas-liquid separation chamber. The bearing of the pump adopts single row radial ball bearing. There is a cooling chamber at the bottom of the bearing body of the pump, and there are sealing rings in the high and low pressure areas of the pump. The shaft end adopts mechanical seal.

Used to transport gasoline, kerosene, aviation kerosene and other petroleum products. The medium temperature is between -20℃ and +80℃. It is an excellent marine oil loading and unloading pump, which can also be used as a stripping water pump. It is also used for oil transportation in oil storage devices such as land oil depots and tank trucks. It can also be used to transport sea water, fresh water, etc.

Performance parameter table:

型號	電機(jī)功率 (kw)	轉(zhuǎn)速（r/min）	口徑 (mm)	流量 (m 3 /h)	揚程 (m)	自吸高度 (m)
25CYZ-A-20	1.1	2900	25	3.2	20	6
25CYZ-A-20	1.5	2900	25	3.2	32	6
32CYZ-A-20	3	2900	32	3.2	50	6
40CYZ-A-20	1.5	2900	40	6.3	20	5
40CYZ-A-32	2.2	2900	40	6.3	32	5
40CYZ-A-40	4	2900	40	10	40	5
40CYZ-A-50	4	2900	40	6.3	50	5
50CYZ-A-12	1.5	2900	50	12.5	12	5
50CYZ-A-20	2.2	2900	50	15	20	5
50CYZ-A-30	3	2900	50	12.5	30	5
50CYZ-A-35	4	2900	50	12.5	35	5
50CYZ-A-40	4	2900	50	10	40	5
50CYZ-A-50	5.5	2900	50	12.5	50	5
50CYZ-A-60	7.5	2900	50	12.5	60	5
50CYZ-A-75	11	2900	50	15	75	5
65CYZ-A-15	3	2900	65	30	15	4
65CYZ-A-32	5.5	2900	65	25	32	5
65CYZ-A-50	7.5	2900	65	25	50	5
65CYZ-A-70	15	2900	65	25	70	5
80CYZ-A-13	3	2900	80	35	13	3.5
80CYZ-A-17	4	2900	80	43	17	3.5
80CYZ-A-22	5.5	2900	80	40	22	3.5
80CYZ-A-25	7.5	2900	80	50	25	4
80CYZ-A-32	7.5	2900	80	50	32	4
80CYZ-A-40	11	2900	80	50	40	4
80CYZ-A-55	18.5	2900	80	60	55	4.5
80CYZ-A-70	22	2900	80	60	70	4.5
100CYZ-A-20	7.5	2900	100	80	20	3.5
100CYZ-A-25	11	2900	100	100	25	4.5
100CYZ-A-32	15	2900	100	100	32	4.5
100CYZ-A-40	18.5	2900	100	100	40	4.5
100CYZ-A-50	22	2900	100	100	50	4.5
100CYZ-A-65	30	2900	100	100	65	4.5
100CYZ-A-75	30	2900	100	100	75	4.5
150CYZ-A-20	18.5	1450	150	180	20	4.5
150CYZ-A-30	30	1450	150	170	30	4.5
150CYZ-A-45	37	2900	150	160	45	4.5
150CYZ-A-55	45	2900	150	160	80	4.5
150CYZ-A-65	55	2900	150	170	65	4.5
150CYZ-A-80	55	2900	150	160	80	4.5
200CYZ-A-32	90	1450,	200	400	32	4.5
250CYZ-A-50	90&, amp;, amp;, amp;, amp;, lt;, /P>	1450	250	400	50	4.5
300CYZ-A-50	110	1450	300	500	50	4.5
