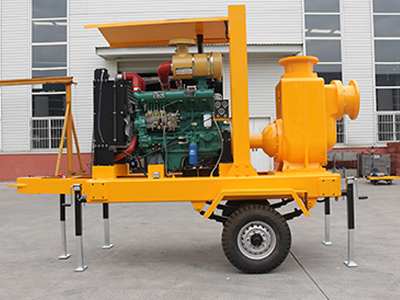

XBC-ZW diesel engine self-priming pump
XBC-ZW diesel engine self-priming pump does not need to press the bottom valve, water diversion, and can suck large solid blocks, long fibers, sediment waste mineral impurities, fecal treatment and all engineering sewage, which completely reduces the labor intensity of workers. Easy installation, less maintenance, stable performance
product description:
XBC diesel self-priming sewage pump-diesel self-priming pump, which integrates self-priming and non-clogging sewage discharge, can not only need to press the bottom valve like ordinary clean water self-priming pumps, do not need to divert water, but also can suck Granular solid block, long fiber dirt, sediment waste mine impurities, fecal treatment and all engineering sewage, completely reduce the labor intensity of workers, and it is convenient to use, move, install, less maintenance, and stable performance.
With the mobility of the diesel engine, there is no need to use wires, which improves the flexibility of the pump.
①Ambient temperature≤45℃, and medium temperature≤60℃.
②The pH value of the medium is 6-9 for cast iron pumps and 1-14 for stainless steel pumps. The large diameter of the passing particles is 60% of the pump caliber, and the fiber length is 5 times the caliber.
③The total weight of impurities in the medium does not exceed 15% of the total weight of the medium, and the specific gravity of the medium does not exceed 1240 kg/m3.

Product configuration:
1. Water pump: S series single-stage double-suction, IS series single-stage single-suction, TSWA series segmented multi-stage, ZW series single-stage self-suction.
2. Diesel engine: equipped with single-cylinder, double-cylinder, four-cylinder, six-cylinder diesel engine, speed: 1500r/min1800r/min2400/min, etc.
3. Other accessories: filter system, silencer system, cooling system, fuel tank, common channel steel base, cooling water tank, battery, charger.
4. Control cabinet: single board computer, PLC programmer, sensor, automatic control cabinet.
Note: It can be selected according to user needs. It can also be designed and customized according to the special needs of users.
