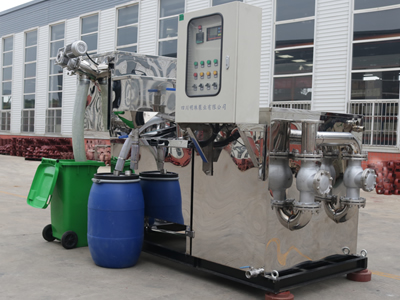

WT oil separation sewage lift pump integrated equipment
WT oil separation sewage lifting integrated equipment is suitable for hotels, kitchens, underground restaurants and non-staple food processing units. Separate and collect sundries, water and oil. It is widely used in places with high requirements for oil and water separation precision and environmental protection.
product description:
WT oil separation sewage lifting integrated equipment, sewage lifting device is suitable for hotels, kitchens, underground restaurants and non-staple food processing units. Separate and collect sundries, water and oil. It is widely used in places with high requirements for oil and water separation precision and environmental protection.
With simple structure and stable use, it is favored by the catering industry such as large and medium-sized star hotels, office buildings, tourist resorts and food courts, and has become a new environmentally friendly product that replaces ordinary grease traps.
Equipment principle:
The main entrance of the equipment is connected to the slop oil-water main pipe. Waste water can enter the oil separation lifting equipment in two ways. The sundries in the waste water are separated in the slag removal device. The waste water and grease enter the oil-water separation bin. The water level rises to a certain position, and the oil-water density is used. The difference principle collects grease in the slick oil collection area, and drains the oil to the waste oil collection barrel through the oil drain valve. The separated waste water in the oil-water separation bin flows into the water storage tank under the action of hydraulic pressure. When the water level in the water storage tank reaches a certain position At the time, the water pump discharges the waste water and the sundries stored in the solid-liquid separation device together.
Function Description:
1. The automatic filtering and slag removal device is adopted to automatically separate the debris from the waste water to ensure that the debris cannot enter the oil-water separation zone, and achieve the automatic slag discharge function, without any manual cleaning and maintenance;
2. The unique backwashing device can effectively flush the oily attachments of the slag removal device at any time to ensure that the slag removal device is kept clean and free of sediment precipitation and adhesion;
3. Multi-point fully guaranteed control system design, real-time liquid level display, to ensure safe and accurate operation of the equipment;
4. Adopt air flotation device to accelerate oil-water separation time, reduce equipment area and save land cost:
5. The automatic heating device is adopted to prevent the slick oil from hardening and affecting the efficiency of oil separation, and it can collect waste oil more effectively;
6. The automatic collection of floating oil and the hydraulic self-flowing structure are adopted, and the collection and operation of waste oil are convenient;
7. The universal oil guide is used to change the water flow channel, slow down the water flow speed, and improve the efficiency of oil separation;
8. It adopts all stainless steel material, the overall structure is compact, beautiful, reasonable layout, small footprint, convenient installation and maintenance.
Troubleshooting:
|
序號 |
故障內容 |
故障分析 |
解決方法 |
|
1 |
跳閘、跳空開 |
電機負載大，嚴重過流 |
關出水閥門，增加阻力 |
|
線路破損，造成短路 |
檢查線路 |
||
|
電機短路 |
更換電機 |
||
|
2 |
電機噪音大 |
軸承缺油 |
加黃油 |
|
超負載運行 |
關小出水閥門，增加阻力 |
||
|
電機反轉 |
調整電機線 |
||
|
3 |
電機運轉，不出水 |
電機反轉 |
調整電機線 |
|
水泵堵塞 |
清理水泵 |
||
|
止回閥打不開 |
檢修止回閥 |
||
|
4 |
電機運轉，水箱內翻水花，但不出水 |
止回閥封閉不嚴 |
更換止回閥 |
|
水泵與分離器連接漏水 |
緊固連接位 |
||
|
分離器密封不嚴 |
檢查分離器，更換密封墊 |
||
|
5 |
手動、自動都發無法啟動 |
控制柜短路 |
檢查，并修復 |
|
零線斷開 |
檢查零線 |
||
|
保險絲保護 |
檢查輸出線路是否短路 |
||
|
故障保護 |
水泵過載，關出水閥門 |
||
|
PLC故障 |
更換PLC |
||
|
進線缺相 |
檢查電源進線 |
||
|
6 |
格柵機無法啟動 |
格柵機傳感器故障 |
檢查并更換 |
|
格柵機卡住 |
清理格柵機 |
||
|
無水探頭故障 |
更換探頭 |
||
|
7 |
油無法排出 |
分離器故障 |
檢查接線 |
|
排油電磁閥故障 |
更滑電磁閥 |
||
|
手動排油閥損壞 |
更滑排油閥 |
||
|
濃度感應器故障 |
檢查并清理濃度感應器 |
||
|
電加熱故障 |
更換電加熱 |
